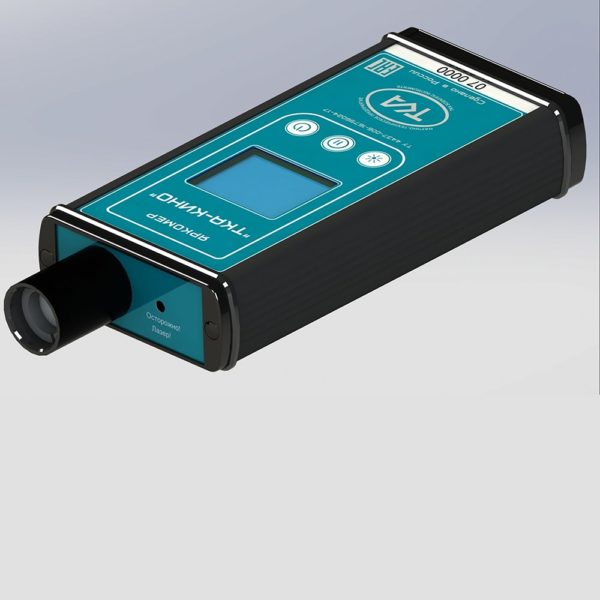

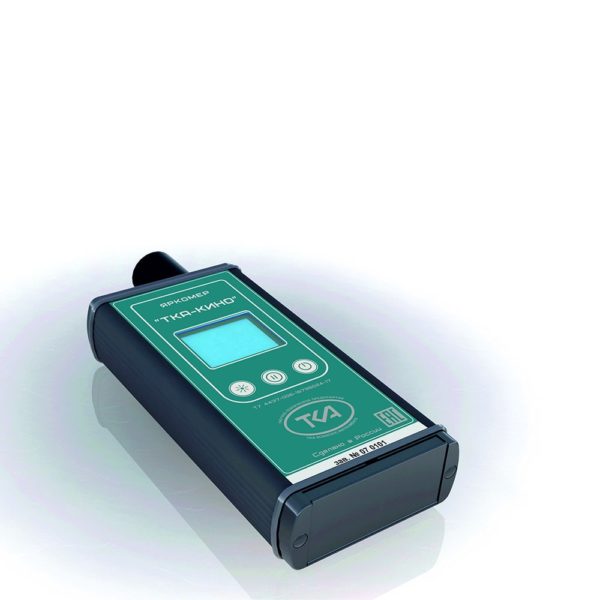

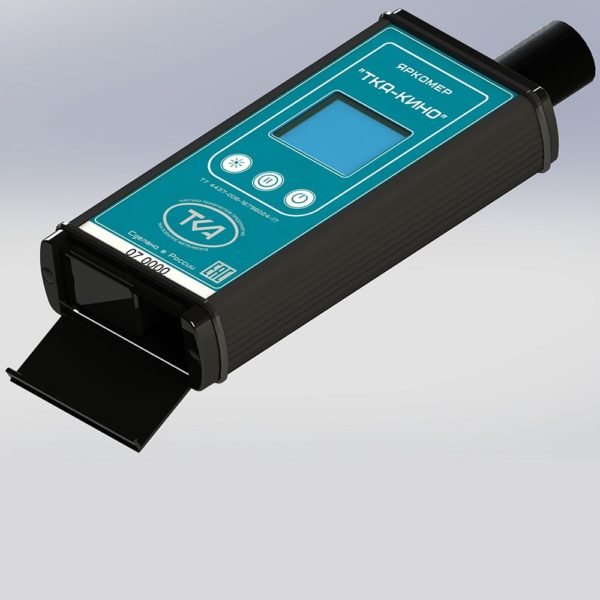

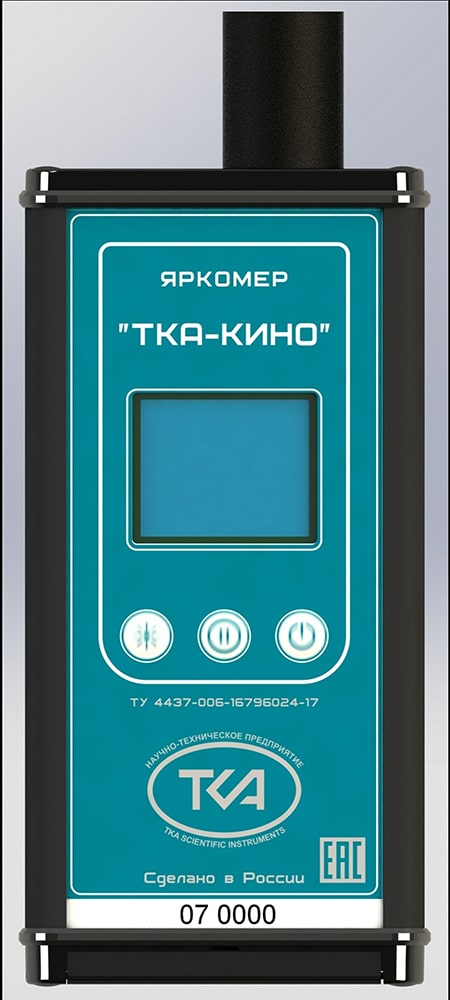

Luminance Meter “TKA-Kino”
- Luminance of distant extended objects: from 10 to 2,000 cd / m² (from 2.8 to 580 fL).
- The price includes factory calibration.
- CoE Declaration 2014/35 / EU
- Supplied factory calibrated
- TU 4437-006-16796024-17
- Application area
- Operating conditions
Main technical characteristics
|Luminance measurement range||10.0 ÷ 2000 cd / m2|
|Luminance measurement range||2.8 ÷ 580 fL|
|Basic relative error of luminance measurements||± 6.0%|
|Nonlinearity error of light characteristics (no more)||± 2.0%|
|Calibration error (no more)||± 3.0%|
|Spectral correction error (no more)||± 3.0%|
Overall dimensions of the device
|Device weight (no more)||0.9 kg|
|Battery (non-removable battery)||2000 mAh|
|Auto power off||5.0|
|Charger voltage (micro USB)||5 V (500 mA)|
|Laser type: Class II, 630-670nm, laser output <5mW.|

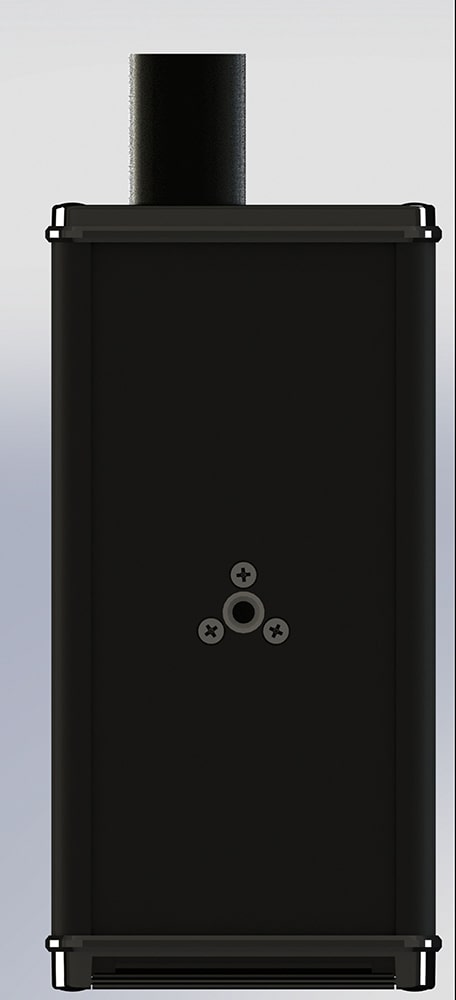

The built-in laser to indicate the direction of measurement and the backlight of the display greatly simplifies the work with the device in a darkened cinema. On the underside of the body there is a hole (1/4 inch thread) for mounting on a tripod.
The device is designed to measure the brightness of distant extended objects in the visible region of the spectrum. The device can be used to establish the compliance of the brightness levels of screens in cinemas with established standards, the brightness of signal lights, light boards, advertising screens, traffic lights, etc.
Areas of activity when it is required to measure high irradiance values for a long time.
|Ambient temperature||from -10 to +40 ° C|
|Relative humidity||up to 98%|
|Atmosphere pressure||80 ÷ 110 kPa|
- Luminance Meter “TKA-Kino”
- AC adapter
- MicroUSB cable – USB 2.0 AM

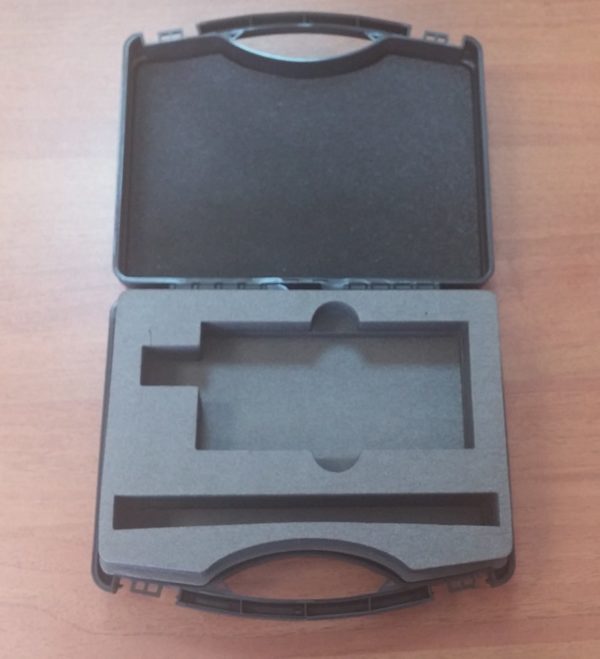

- Instrument case
- Transport container
